Revit 2012 New Feature: Linked Point Cloud Data

My name is Cesar Escalante, Application Specialist for Ideate Inc. Ideate has looked into these features, and I would like to highlight some of the interesting features that Revit 2012 has introduced.

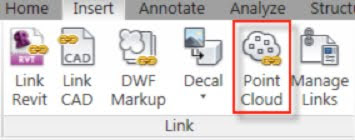

The Revit 2012 Suite of products includes now a direct way to link and visualize Point Cloud data. A point cloud is a set of vertices with three-dimensional coordinates created by 3D scanners. The new feature allows Revit to read .PCG files to visualize volumetric data of existing buildings or manufactured parts.

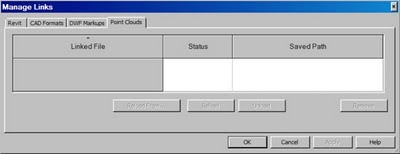

To administer the linked data, a new ‘Point Clouds’ tab is now part of the Manage Link dialog box. Here one can reload, unload the data, and display the link status and saved path.

Workplane Viewer

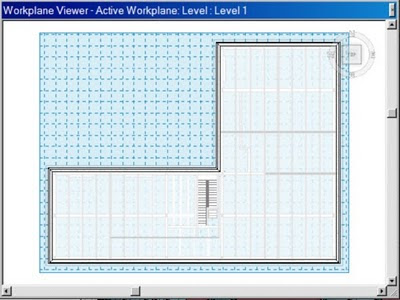

This new feature creates a temporary view to visualize and orient the model to the active workplane. The view pops up as a floating window and has no scale or view control tools, and is not saved in under the Project Browser. The purpose is to quickly visualize the active workplane and edit Revit elements along the active workplane.

A navigation box is included in the view orient the model to a different viewpoint and zooming is enabled via mouse wheel scrolling.

Stay tuned for more information on how each of these two features will be beneficial to your firm.
