Quick Tip: Revit Revisions

Forcing Revision Visibility on Sheets

Ever wanted to show the Revision Schedule on a Sheet even if no Revisions are present?

Well it’s rather simple:

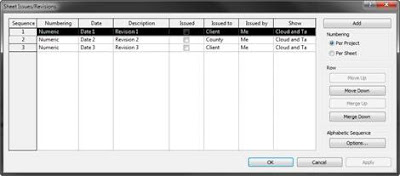

First Create your Revisions :

Once you have your Revision Schedule populated, all you need to do is use a little known property of the sheet:

Properties > Revisions on Sheet

By toggling any Revision in the dialog Box, you will force the Title block to show the toggled revisions:

I have been asked about this a few times and it is standard practice with some firms to show all revisions on every sheet in the set. This is the fastest, cleanest way I have seen within Revit.
